Quick Ice Maker

Detailed description of quick ice maker:

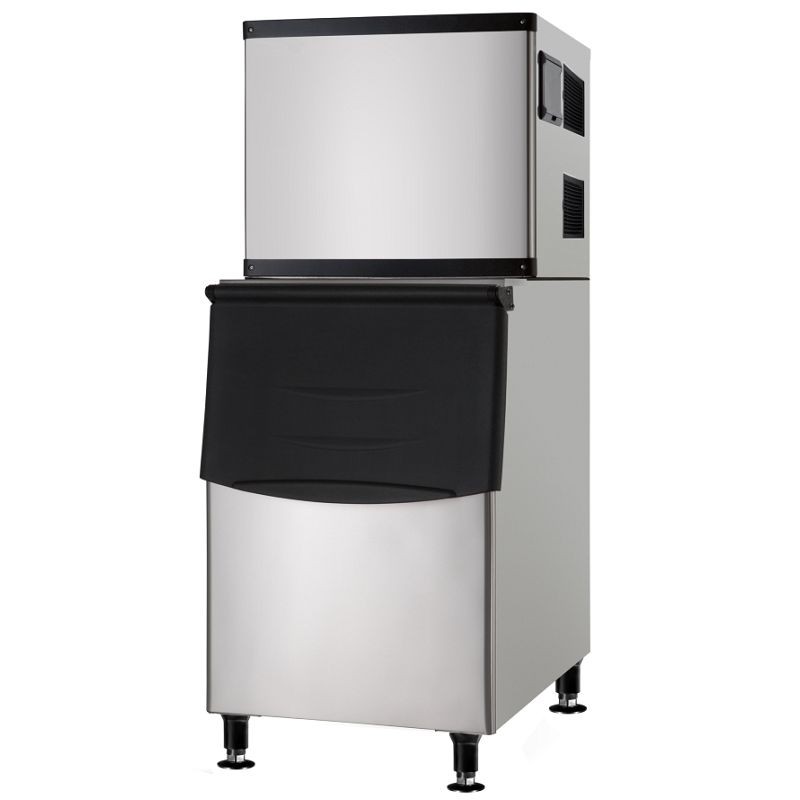

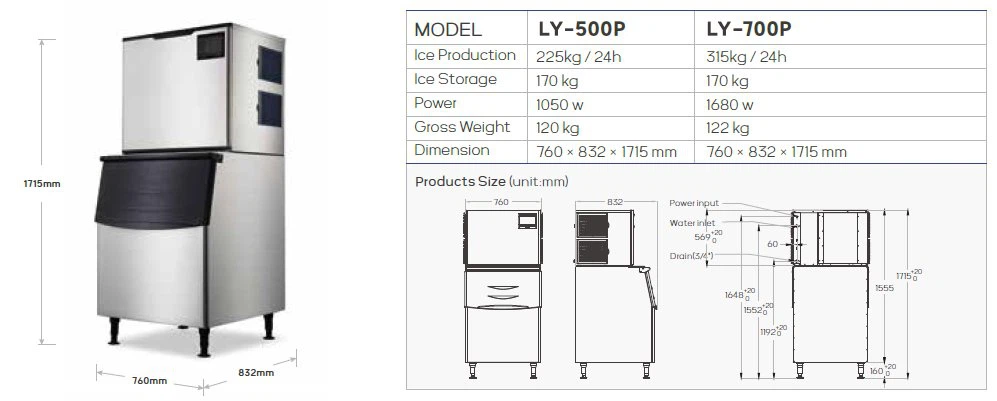

The model of this quick ice maker is LY500P, the output of the ice maker is 225KG/24 hours, the ice storage capacity is 170KG, the size of the machine is 760 * 832 * 1715MM, the ice making efficiency is fast, and the quickest ice is 8 minutes, which is suitable for various commercial places.

Features of quick ice maker

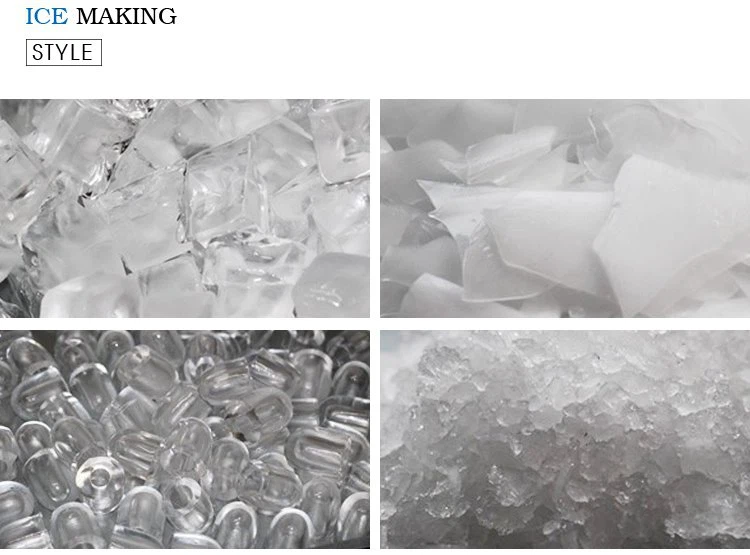

1. The shape of this quick ice maker is cube.

2. The ice block of quick ice maker has high hardness, the freezing point can reach below - 20 ℃, the ice block is crystal clear, not easy to melt, and the cooling speed is fast.

3. There are protective shutdown functions such as ice full display, water shortage display, supercooling protection display, fault warning display, etc.

4. The ice making process of quick ice maker adopts full computer program control and imported computer chips, which are reliable in control and stable in operation.

5. The unique water tank floating ball inlet system ensures no residual water and water, and saves water and electricity.

6. With high-quality stainless steel shell, corrosion resistance and durability, and split structure design, it can store more ice and enjoy ice at any time.

7. Quick ice maker has reliable quality, stable performance, low noise, stable and reliable operation, high ice hardness and low temperature.

Installation of water system of quick ice maker:

1. Please connect the water source that meets the local drinking water standard.

2. If necessary, connect the filter to improve the drinking standard of water.

3. The water supply system of the quick ice maker must meet the following conditions:

a. The minimum water temperature is 2 ° C and the maximum temperature is not more than 38 ° C;

b. The minimum water pressure is 0.02Mpa, and the maximum water pressure is 0.8Mpa

Power supply unit of quick ice maker:

1. The power supply of the quick ice maker must be consistent with the indication on the machine nameplate.

2. All lines of quick ice maker must comply with national standards.

3. The quick ice maker must be reliably grounded, and the grounding wire must meet the electrical standards.

4. The voltage fluctuation of the quick ice maker shall not exceed ± 10% of the rated voltage.

LINYA technology Advantage-A manufacturer specializing in the production of quick ice maker for 14 years

In 2008, LY-80P-2000P Cubic Ice Machine was formally put into production.

In 2013, Snow Flake Machine was formally put into production.

In the first half year of 2014,LY-31A-101A Cubic Ice Machine was formally put into production

In the second half year of 2014, LY-41B-101B Bar Counter Ice Machine was formally put into production

Since 2015, LY-35C Spray Style Ice Machine was formally put into production. We has developed other types of ice machine and strength the complete set of existing products, to make our products more diversified.

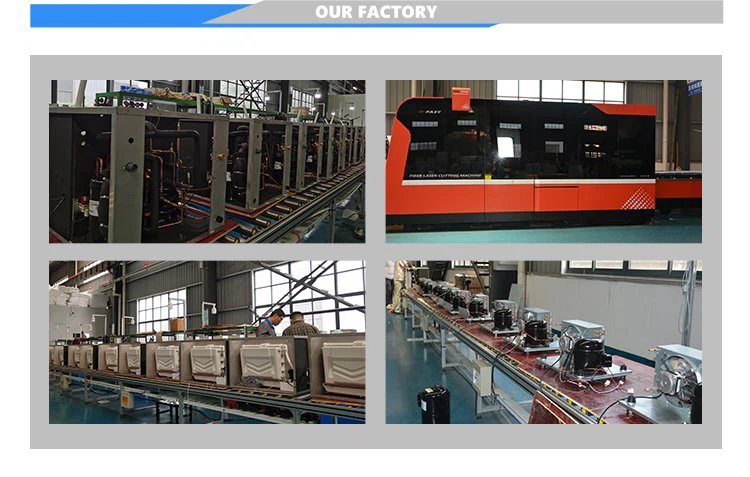

Imported equipment

Imported leak detector

Imported sheet metal laser cutting machine

Imported high pressure foaming machine

Imported liquid filling machine

The ice making machines of linya technology are equipped with the ice thickness adjustment function. The thin, medium and thick three gear adjustment can be operated by pressing the button.

The thickness requirements of different drinks are fully satisfied, and the time of thin ice and thick ice is slightly different.

Ice making cycle of quick ice maker

Quick ice maker automatically enters a water storage tank through the make-up water valve, and then sends the water through the flow control valve to the diversion head through the water pump, where the water is evenly sprayed on the surface of the ice maker, flows through the wall of the ice maker like a water curtain, and the water is cooled to the freezing point, while the water that has not been evaporated and frozen will flow into the storage tank through the multi-hole tank, and the cycle work will start again.

Quick ice maker ice harvesting cycle

When the ice reaches the required thickness (the thickness can be selected by the operator/user at will), the hot gas discharged from the compressor of quick ice maker will be led back to the ice maker wall to replace the low-temperature liquid refrigerant. In this way, a film of water is formed between the ice and the wall of the evaporation tube. This film of water will play a role in lubrication when the ice falls freely into the groove below under the action of gravity. The water generated in the ice mining cycle will return to the storage tank through the multi-hole tank, which also prevents the wet ice from being discharged by the machine.

Quick ice maker condensation

Quick ice maker can be realized by air-cooled, water-cooled or evaporative condenser. The evaporative condenser is installed above the ice maker, the water-cooled condenser is installed below the ice maker or the refrigeration system, and the air-cooled condenser can be installed together with the ice maker or outdoors according to the actual situation. If necessary, the water-cooled condenser can be used on the ship or on the coast to cool with seawater. Evaporative cooling can be used when the ambient air temperature is high, but from the perspective of efficiency and economy, it is not suitable to use water-cooled or air-cooled cooling.

Q: What's your lead-time and payment term?

A: Normally, our lead-time is 20-30 days after the confirmation of the artwork, and also depends your order quantity and request.

Q: Why should you buy from us not from other suppliers?

A:LINYA technology has been commercial refrigeration industry for over 14 years, we design and manufacture refrigeration equipment with delicate producing process and strict QC procedure. Also we provide OEM adn ODM service for customers.
